Range Rover Sport Engine Replacement | Oil Pump Failure & Internal Engine Damage

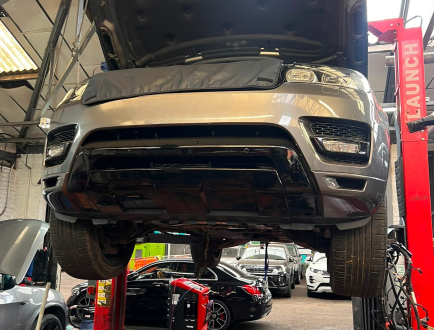

Vehicle undergoing engine repair in a professional workshop

The Range Rover Sport is raised on the workshop lift with the bonnet open. The engine and associated components have been removed and placed beneath the vehicle for inspection.

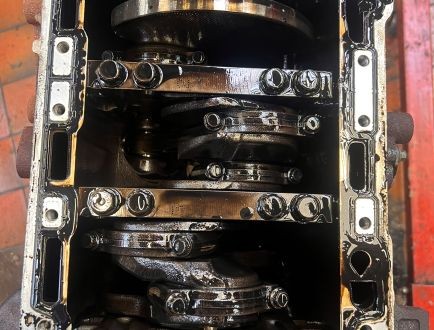

Disassembled engine block showing internal components during engine rebuild

The exposed lower engine block shows the crankshaft, connecting rods and main bearing caps during the internal engine inspection.

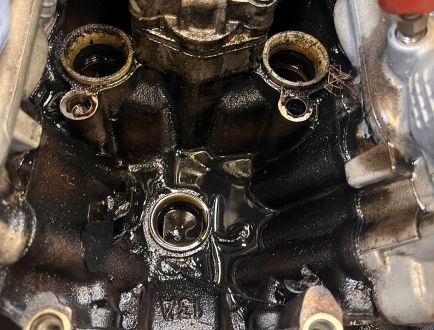

Engine block and internal components inspected during engine reconditioning

The oil cooler and oil filter housing area shows heavy oil residue and pooled contamination around the exposed mounting points.

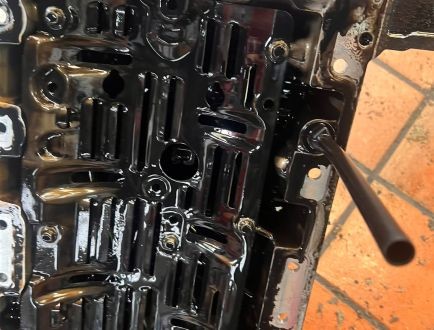

Removed engine components laid out for inspection and rebuild

The inside of the lower crankcase and oil-control assembly is shown coated with engine oil following dismantling.

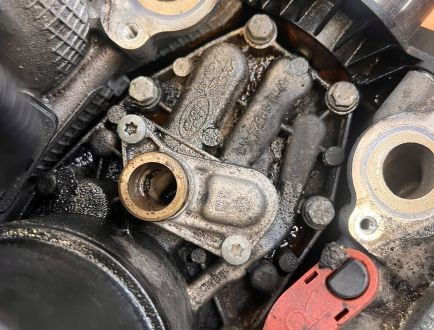

Engine timing and internal components during engine rebuild

The oil pump area at the front of the engine is exposed for inspection following the confirmed oil pump failure.

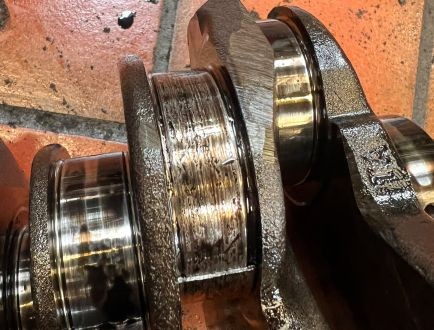

Crankshaft and bearing surfaces inspected during engine reconditioning

A close-up of the removed crankshaft shows severe scoring, metal transfer and extensive surface damage across one of the bearing journals.

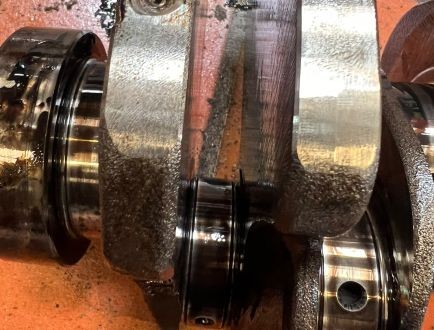

Close-up of crankshaft journals showing engine wear during inspection

Another section of the crankshaft shows significant wear and scoring across the main bearing journal surfaces.

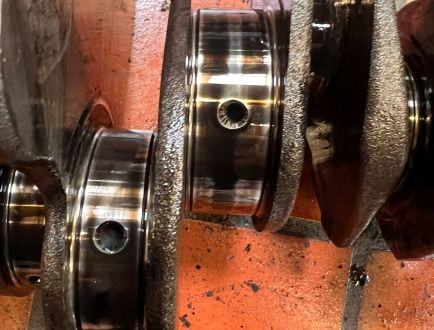

Close-up of crankshaft bearing journal during engine rebuild inspection

A further view of the crankshaft shows wear, scoring and discolouration affecting several journal surfaces.

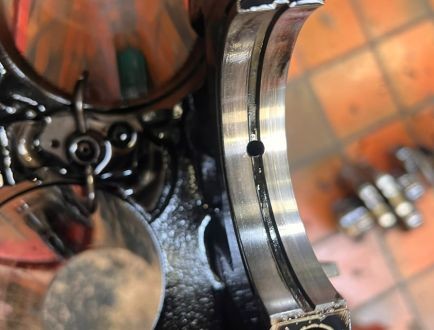

Engine pistons and crankshaft components during engine rebuild

A close-up of the main bearing housing shows the bearing surface and oil-feed opening after the crankshaft was removed for inspection.

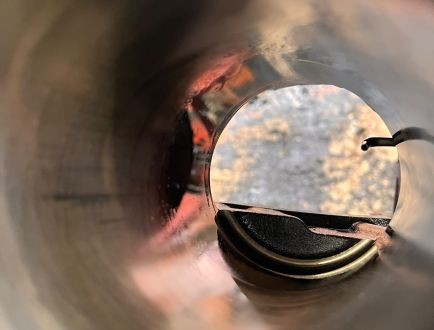

Close-up view inside an engine cylinder during inspection

A view through one of the cylinder bores shows the cylinder wall and piston during the internal engine assessment.

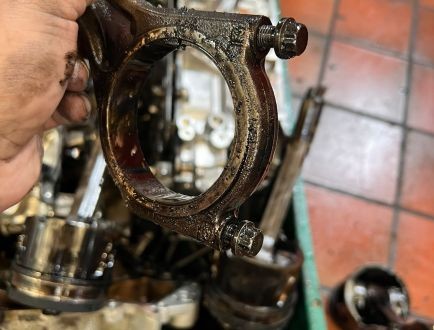

Removed engine component being inspected during engine rebuild

A removed connecting rod is shown close-up, with oil contamination and visible wear around the big-end bearing surface.

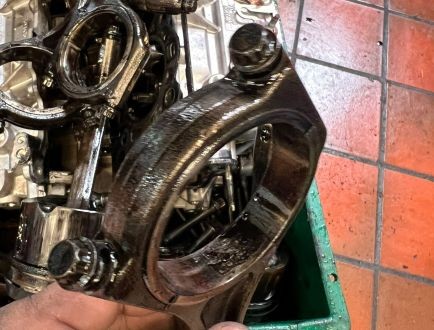

Engine component removed for inspection and reconditioning

Several connecting rods and their big-end bearing housings are shown after removal from the damaged engine.

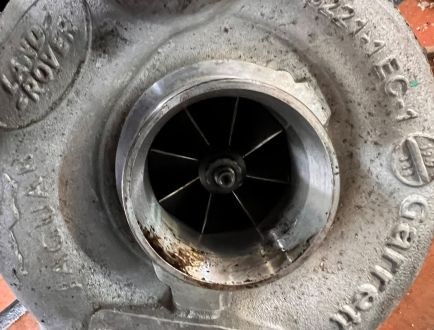

Close-up of turbocharger housing and internal components during inspection

The turbocharger compressor inlet is shown with the compressor wheel exposed and visible oil residue around the inlet area.

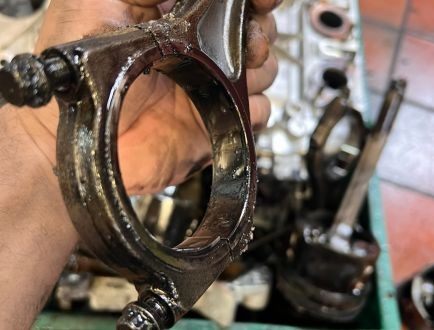

Engine component being inspected during professional engine reconditioning

A second connecting rod shows wear, darkening and oil contamination around its big-end bearing surface.

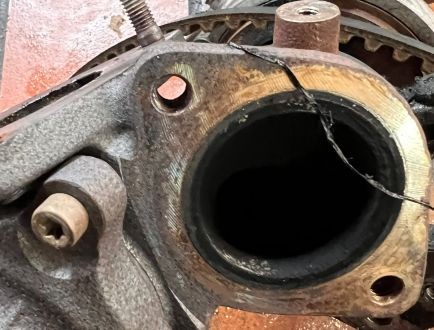

Close-up of engine housing opening during engine inspection

A close-up of the turbocharger housing shows a prominent crack extending from the flange into the surrounding casting.

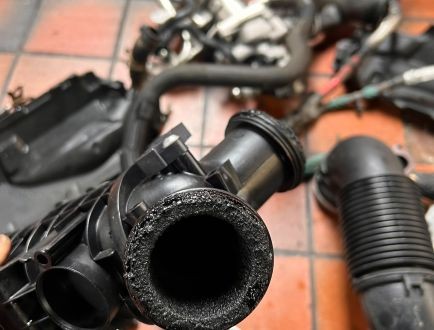

Engine pipe and component assembly being inspected during repair

A removed inlet-system component shows a heavy build-up of carbon deposits that substantially restricts the internal passage.

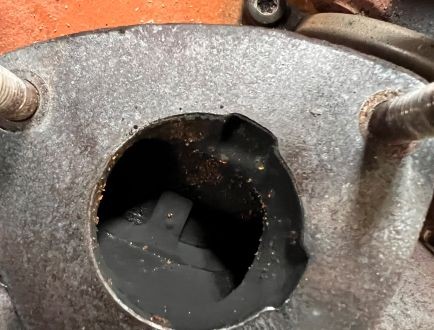

Damaged engine component showing signs of mechanical failure

The exhaust side of the turbocharger is shown with the internal turbine area exposed and heavy soot and carbon contamination visible inside the housing.

Facing a similar issue? Get a quote now for your vehicle.

Engine Work Details

The Range Rover Sport was brought to our workshop following a serious engine failure. Inspection found that the oil pump had failed, causing severe damage to the crankshaft. The failure had also caused extensive damage to the main bearing housing within the engine block. Due to the extent of this internal damage, the original engine was considered beyond economical repair and an engine replacement was recommended.
Further inspection identified considerable oil contamination on the inlet side of both turbochargers. Heavy carbon deposits were also found throughout the inlet system, EGR system and rocker breather covers. Excessive oil leakage was present around the oil filter housing and oil cooler assembly.

The recommended repair work includes:
Engine replacement
Turbocharger set replacement
Rocker breather cover replacement
Oil cooler replacement
Oil level sensor replacement
Thermostat housing replacement
Rectification of the oil leakage around the oil filter housing and oil cooler assembly
Cleaning of the contaminated inlet system
Thorough cleaning of the DPF, exhaust and EGR systems
All necessary service parts and ancillary components

Completing this work together will provide a more comprehensive repair and reduce the risk of contaminated or worn supporting components affecting the replacement engine.
The DPF, EGR and exhaust systems have been exposed to significant oil and carbon contamination. These systems will be thoroughly cleaned as part of the repair, but their current condition and future performance cannot be guaranteed through cleaning alone.
Following the engine work, the DPF, EGR system and associated exhaust sensors will require further testing and monitoring. Any remaining or subsequent faults may require additional diagnosis and the replacement of affected exhaust components, including the DPF.
