Range Rover Sport Engine Replacement – Oil Pump Failure & Internal Engine Damage

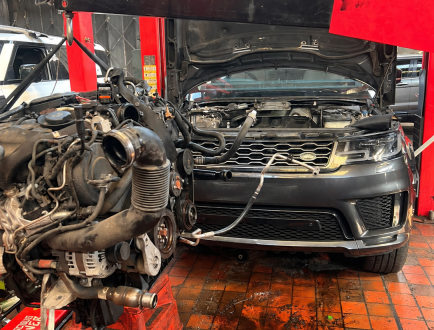

The Range Rover Sport is shown inside the workshop with the bonnet open and the engine removed from the vehicle for inspection and repair.

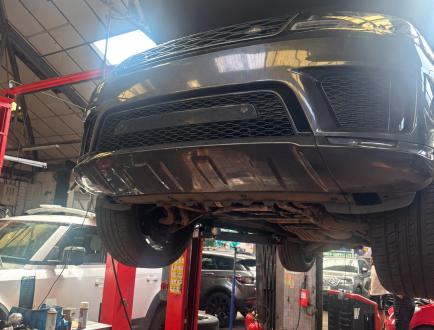

The Range Rover Sport is raised on a workshop lift, providing access to the underside of the vehicle during the engine removal and inspection process.

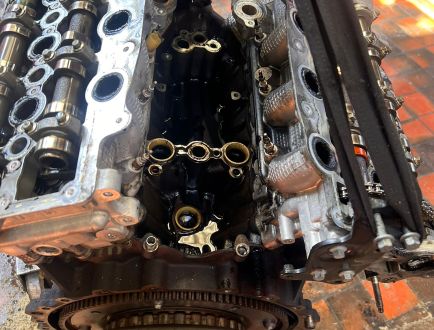

The dismantled engine is shown from above with the cylinder head, timing components and internal engine areas exposed for inspection.

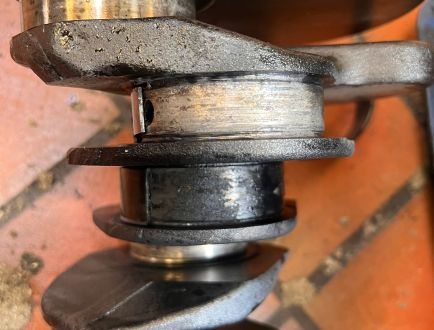

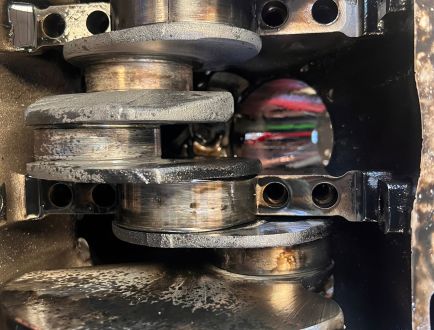

A close-up view of the crankshaft shows significant scoring, wear and surface damage around the crankshaft journals.

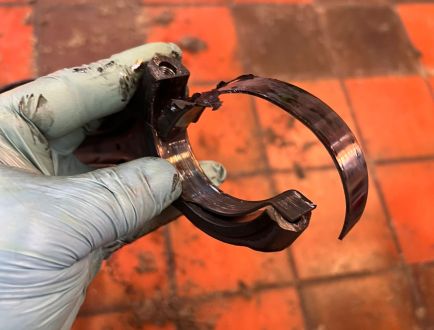

A removed engine bearing is being held for inspection, showing severe wear and damage across the bearing surface.

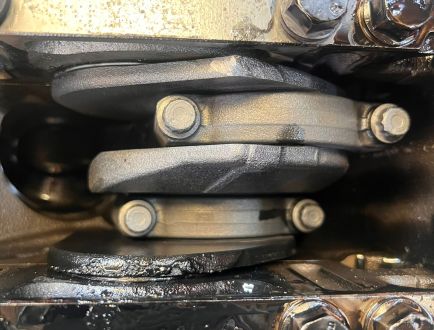

A close-up view of the lower engine assembly shows the connecting rod and crankshaft components exposed during the inspection.

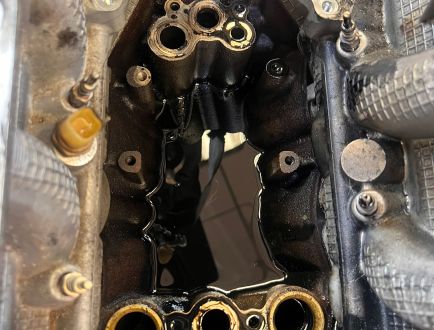

The dismantled engine is shown with the internal components and oil passages exposed for detailed inspection.

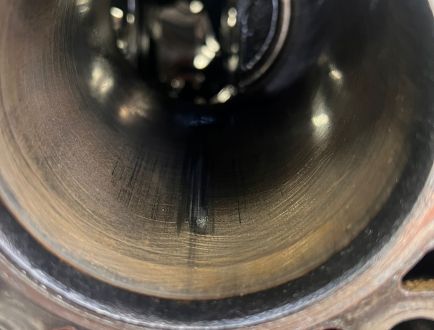

A close-up view inside one of the engine cylinder bores, showing the internal cylinder surface and piston area.

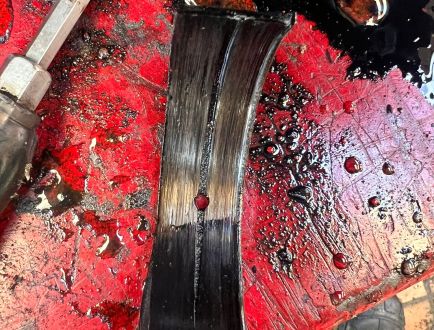

A removed engine bearing shell is shown close-up with heavy scoring, wear and visible surface damage.

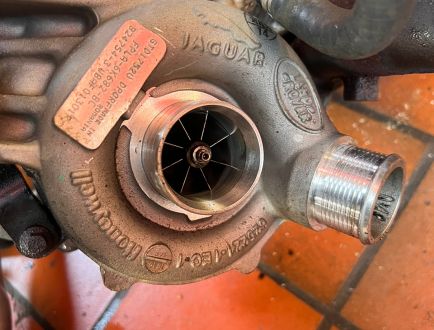

A turbocharger is shown close-up with the compressor wheel and inlet area visible during the inspection.

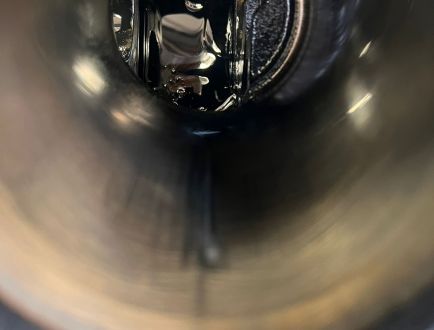

A close-up view inside an engine passage shows visible dark oil residue and deposits around the internal surface.

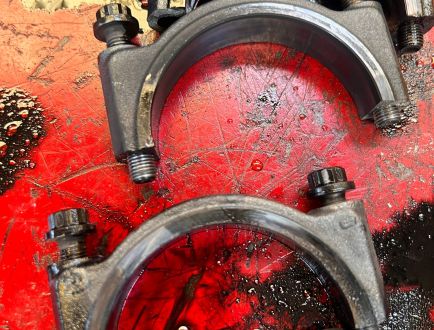

Several removed engine bearing components are shown together, with visible wear and surface damage.
A close-up view of the crankshaft shows significant scoring and wear across the crankshaft journal surfaces.

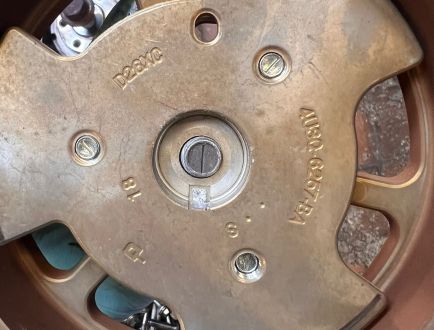

A circular engine component is shown close-up as part of the inspection of the dismantled engine assembly.

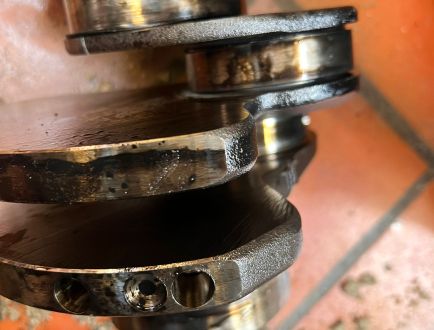

Another close-up view of the crankshaft shows substantial wear and damage around the crankshaft journals and bearing surfaces.

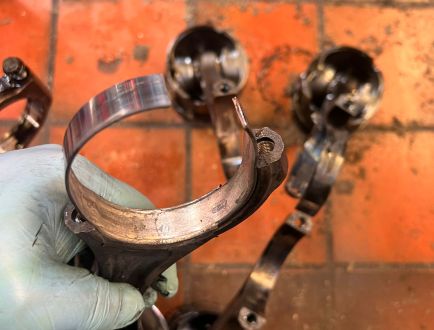

A heavily worn engine bearing is being held by a technician, with significant scoring and surface damage visible.

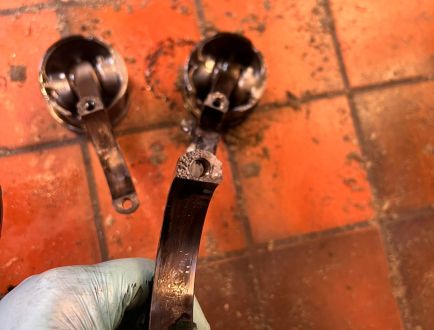

A removed piston and connecting rod assembly is shown during the internal inspection of the engine.

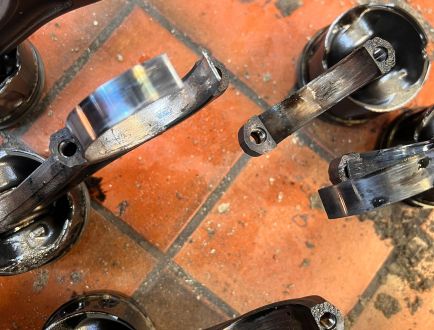

Several piston and connecting rod assemblies are shown removed from the engine and laid out for inspection.

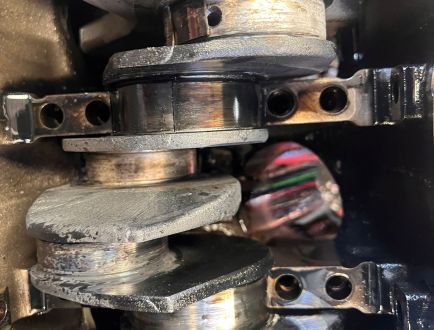

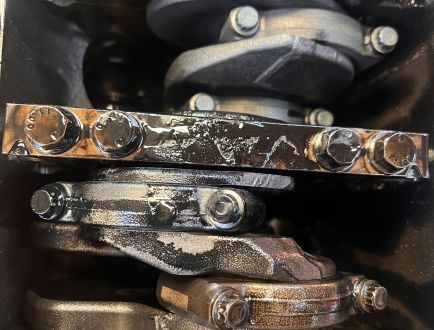

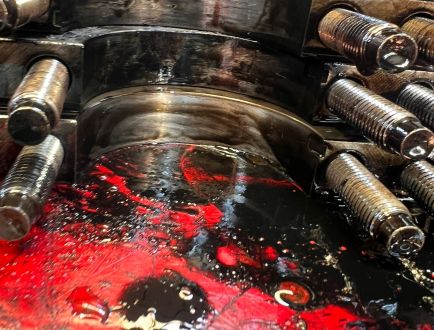

The lower engine assembly is shown with the crankshaft and main bearing areas exposed, revealing significant damage to the bearing housing surfaces.

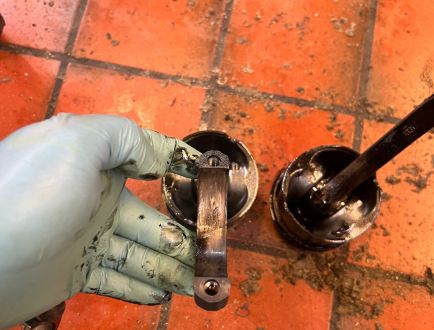

A removed connecting rod and bearing component is shown close-up during the inspection of the damaged engine.
A close-up view of the crankshaft shows extensive wear and damage across several journal and bearing areas.
The dismantled lower engine assembly is shown with the crankshaft and connecting rod components exposed for inspection.

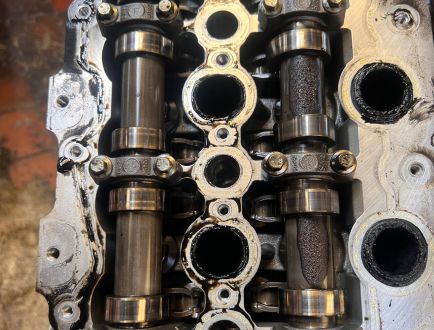

The upper engine assembly is shown dismantled with the camshafts and surrounding cylinder head components exposed for inspection.
Engine Work Details
The Range Rover Sport was brought to our workshop for inspection following a serious engine failure. During the inspection, we identified severe crankshaft damage following the failure of the oil pump. The damage has also affected the engine block's main bearing housing, meaning the original engine is beyond economical repair and will require replacement.
Further inspection identified considerable oil contamination on the inlet side of both turbochargers, together with heavy carbon deposits throughout the inlet and EGR systems. This has raised concerns regarding the condition of the DPF and associated exhaust components.
Oil contamination was also found throughout the cooling system. The complete cooling system will therefore require a thorough flush, along with the replacement of several components to ensure the system is properly cleaned and operating correctly.
The required repair work includes:
Further inspection identified considerable oil contamination on the inlet side of both turbochargers, together with heavy carbon deposits throughout the inlet and EGR systems. This has raised concerns regarding the condition of the DPF and associated exhaust components.
Oil contamination was also found throughout the cooling system. The complete cooling system will therefore require a thorough flush, along with the replacement of several components to ensure the system is properly cleaned and operating correctly.
The required repair work includes:
- Engine replacement
- Turbocharger set replacement
- Upgraded aluminium rocker covers
- Oil cooler replacement
- Oil level sensor replacement
- Water expansion tank replacement
- Thermostat housing replacement
- Radiator-to-expansion-tank return pipe replacement
- Water pump replacement
- Complete cooling system flush
- Cleaning/inspection of the inlet and EGR systems
- Inspection of the DPF and associated exhaust components
- All necessary service parts and ancillary components
Replacing these components at this stage will help provide a complete, reliable and long-lasting repair while reducing the risk of further issues once the vehicle is returned to the road.
